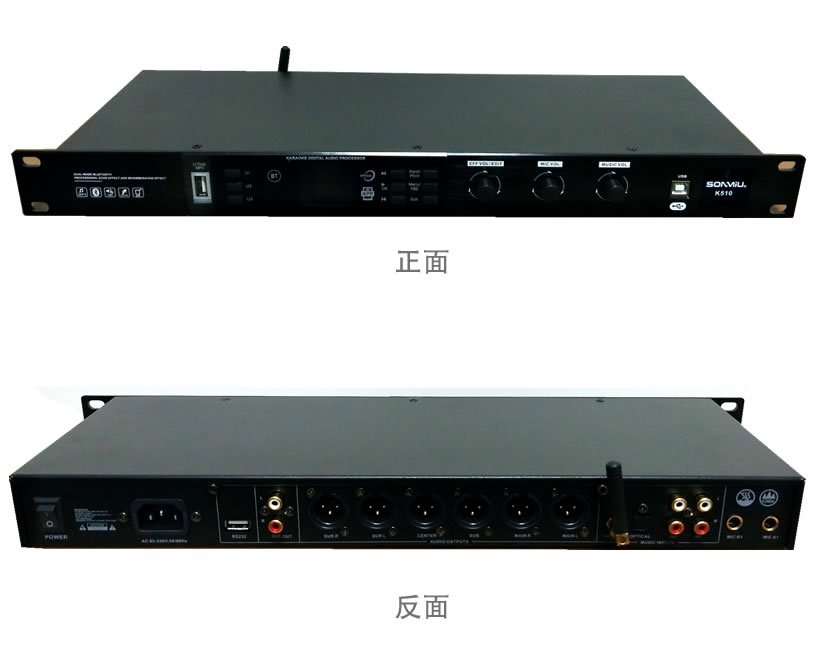

K510 Effector
Model:K510
size:
application:
K510 effector product introduction:
The sampling rate is 96k, with 48bit, and the channel distortion is less than 0.01%. It has 32 segment parameter equalization and pressure limit functions for microphone and music, 10 segment parameter equalization for front box, rear box and middle box, and all outputs have frequency division point delay function. The volume of the 4-way microphone is adjusted independently, divided into two groups, and the effect and balance can be adjusted independently or continuously. Optical brazing, coaxial and analog input, switchable input or combined input, and built-in dts5 1 decoding with Bluetooth
Maximum input level: mic120mvrms Music1 8Vrms
Maximum output level: MIC2 7mVrmsMUSIC1. 8Vrms
