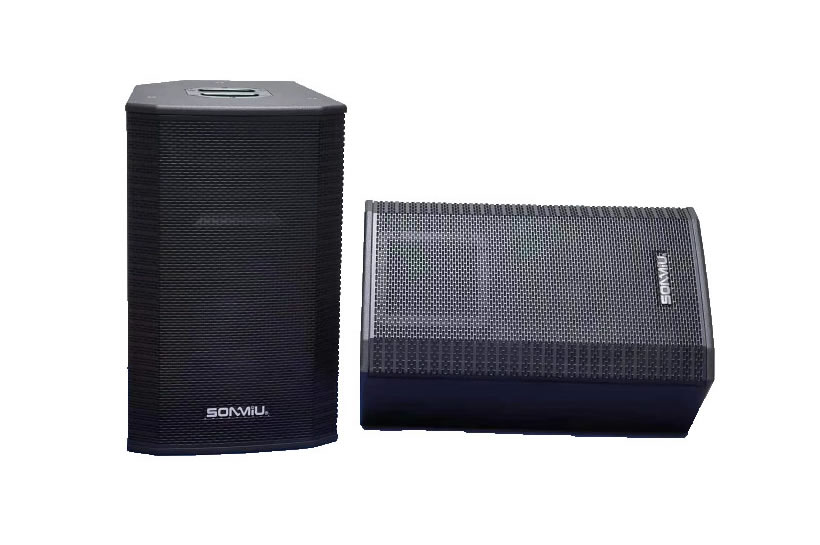

ZS-12 voice box

Zs12 is a high-quality and reliable two tone full frequency sound, equipped with a 44 core tweeter and a 12 inch woofer with great dynamic margin. Through computer-aided design and precision test of simulation technology, the sound restoration is more accurate. The box body adopts multi-layer composite splint precision processing and multiple special spraying, which is firm and durable。

frequency response                   45Hz-20KHz

Sensitivity(1W@1m)              99dB

Nominal impedance                   8Ω

Rated power                   450W

Subwoofer                   1×12＂(300mm)/3＂voice coil LF

Tweeter                   1×1＂(25mm)/1.75＂voice coil HF

Diffusion angle                   80°×50°

Maximum sound pressure level                 124dB continuous,130dB peak
