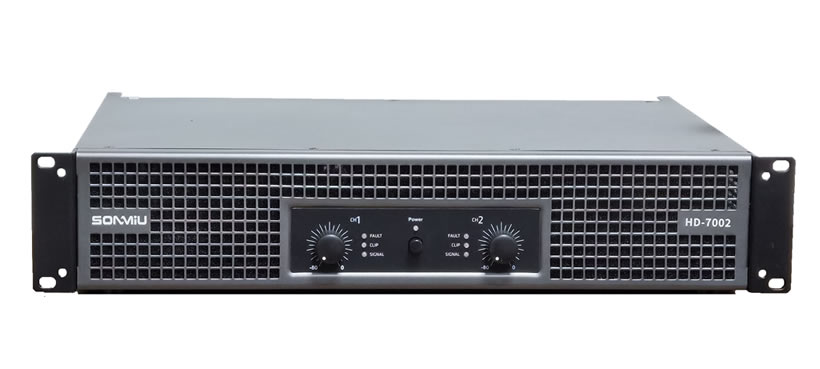

HD7002功放
型号：HD7002
规格：
应用范围：
详细介绍
技术参数表/Parameter table
| 型号 Model | HD5002 | HD7002 |
| 8Ω立体声功率 8ΩDual channel driver | 500W×2 | 700W×2 |
| 4Ω立体声功率 4ΩDual channel driver | 600W×2 | 850W×2 |
| 2Ω立体声功率 2ΩDual channel driver | 650W×2 | 930W×2 |
| 频率响应 Frequency response | 20Hz -20kHz ,+/-0.5dB | |
| 总谐波失真 THD+N | < 0.08% | |
| 信噪比 S/N rate | > 90dB | |
| 阻尼系数 Damping factor | >300(20-500Hz/8Ω) | |
| 输出电路类型 Amplification type | 2H | |
| 产品外形尺寸 Product dimensions | 483×88×340mm/机箱安装内宽440mm | |
| 运输重量 Transport weight | 15.5kg | 17kg |
